In the context of the massive housing initiative by the Government of India and various States/UTs schemes and programmes, the Technology Sub-Mission under Pradhan Mantri Awas Yojana (Urban) facilitates adoption of modern, innovative and green technologies and building material for faster and quality construction of houses. In this regard, BMTPC during recent past, has initiated number of Demonstration Housing Projects in various parts of the country under the Pradhan Mantri Awas Yojana (Urban) – Housing for All Mission. The efforts of the Council have helped in building up confidence and acceptability of proven and emerging technologies to public & private construction agencies, professionals etc. These Demonstration Housing Projects have helped in spreading awareness about new technologies and disseminate technical know-how in the States. Most of the States are adopting new construction technologies for speedy, safe and sustainable construction.

PROJECT PROFILE

Technology being Used	Prefabricated Sandwich Panel System-EPS Cement Sandwich Panels with steel structure
Usage of the project	Working women hostel (on rental basis)
Nodal agency	Works & Housing Department, Kohima
Location of the project	PWD Housing Complex Sematila,Dimapur,Nagaland
Plot Area for DHP	2819.35 Sq.mts.
No. of Dwelling units (DUs)	40 Nos. (G+2) Each unit consist of a room, a pantry, Toilet & Balcony
Other provisions (Residential)	Dining Hall with Kitchen (1 No.) Activity Room (1 No.) Medical Room with toilet (1 No.) Office with Toilet (1 No.) Care Taker Room with toilet (1 No.)
Community Center	Single storey Multipurpose Hall with Kitchen Other Provision includes 2 shops & a office, 2 toilets & 1 physically handicapped toilet
Carpet Area of a unit	25.21 Sq. mts.
Built up Area of a unit	28.60 Sq. mts.
Built up area of Residential Block	1778.00 Sq.mts	19131.28 Sq. fts
Built up area of Community Center	272.00 Sq. mts
Total Built up Area	2050.00 Sq. mts	22058 Sq. fts
Name of the Contracting Agency	M/s I. Kronu & Co., Kohima

TECHNOLOGIES/SPECIFICATIONS BEING USED

Foundation	Isolated RCC column footing/pile foundation with Plinth beam Anti-termite treatment /Termite-mat - as per CPWD specifications.

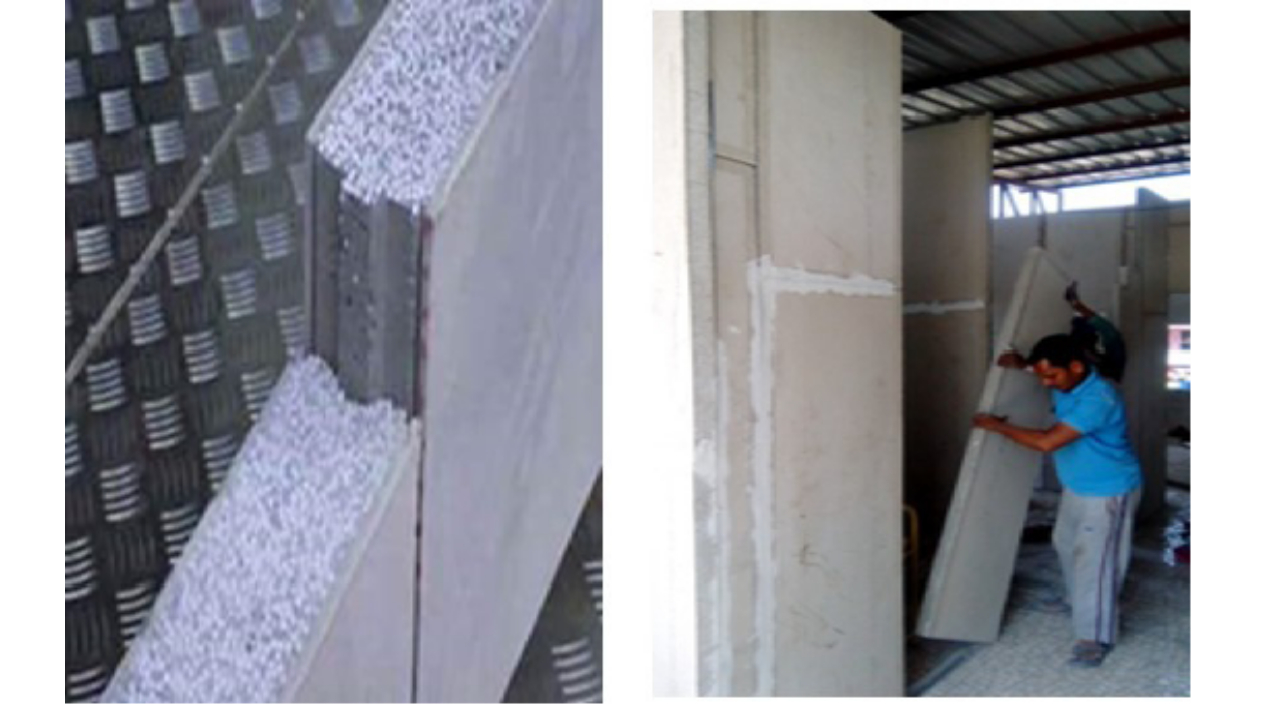

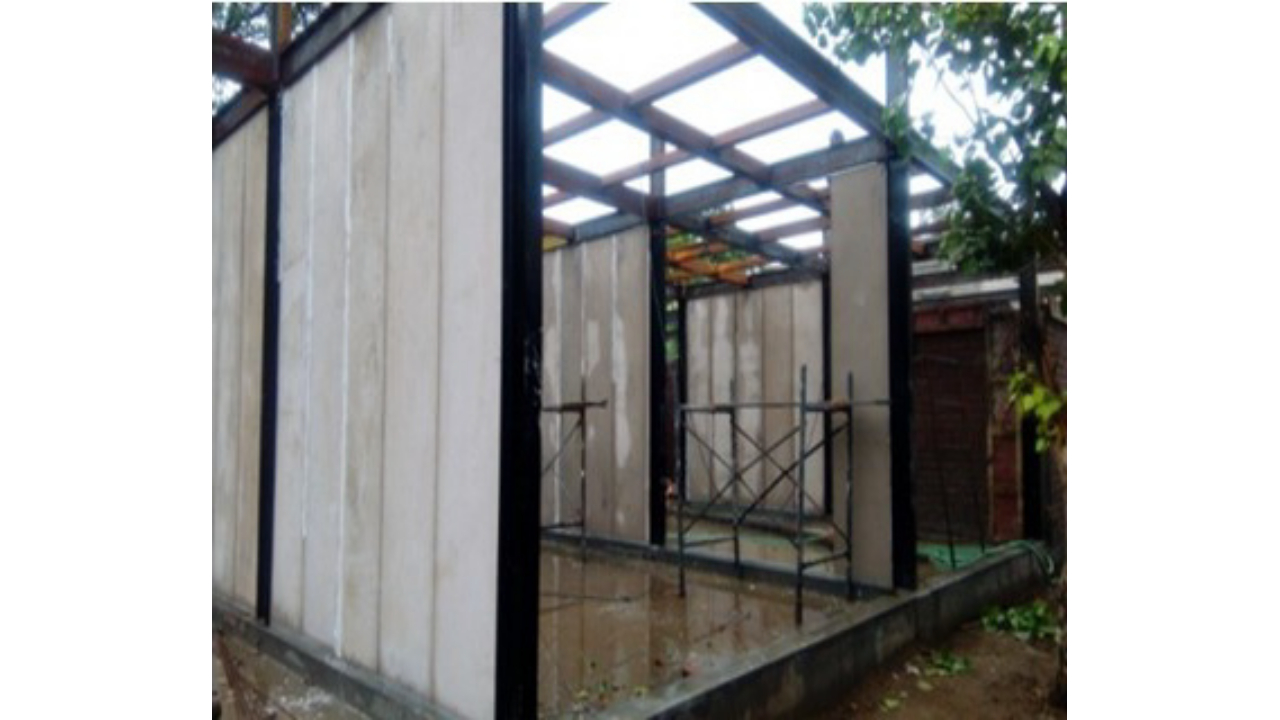

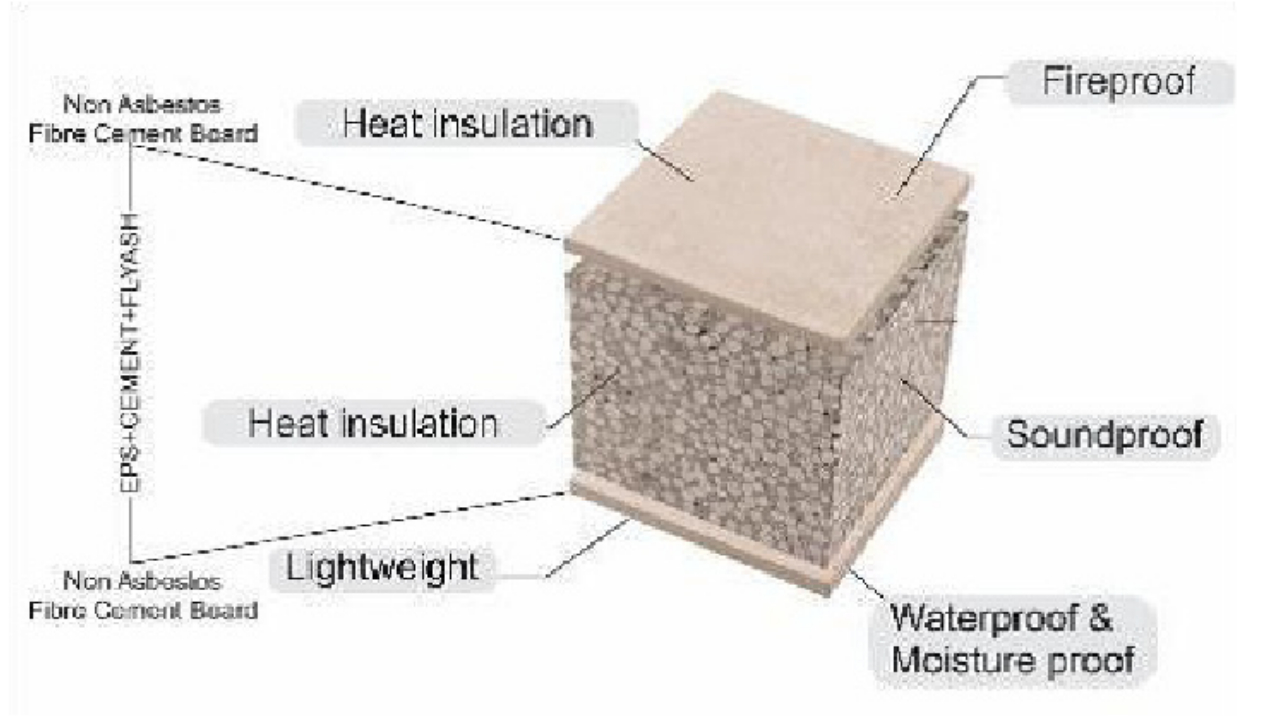

Walling	EPS Cement Sandwich Panels with steel structure
Roofing	EPS Cement Sandwich Panels with steel structure
Joinery & Finishing	Flush door shutters fitted in pressed steel door frames FRP door frames & shutter in toilets M.S Grill door at entrance of each room with mosquito net uPVC window frame with uPVC glazed panel and wire mesh shutter in rooms and toilet Wooden Cabinet in rooms, wood work under pantry/kitchen platform
Flooring	Vitrified tile flooring in Rooms, Pantry & Balcony Marble stone on pantry/kitchen counter Anti-skid ceramic tiles in toilet Kota stone Flooring in common areas and staircase
Wall Finishes	Weather proof paint on external walls Oil Bound distemper over Putty on internal walls. Marble stone slab on sills and jams of window Tiles up to ceiling height on walls in toilets Tiles in kitchen above platform up to ceiling height
Infrastructure Components	Interlocking blocks on pavement Boundary Wall with barbed wire fencing Provision of Ramp with MS railing. Underground water tank with pump house Septic tank and soak pit Rain water harvesting tank Solar street light with LED light Solar panel on terrace for supply of electricity to common areas Solar water heating system Landscaping Fire Fighting Provisions

S.No	Description	Action
1.	Site Layout Plan	View

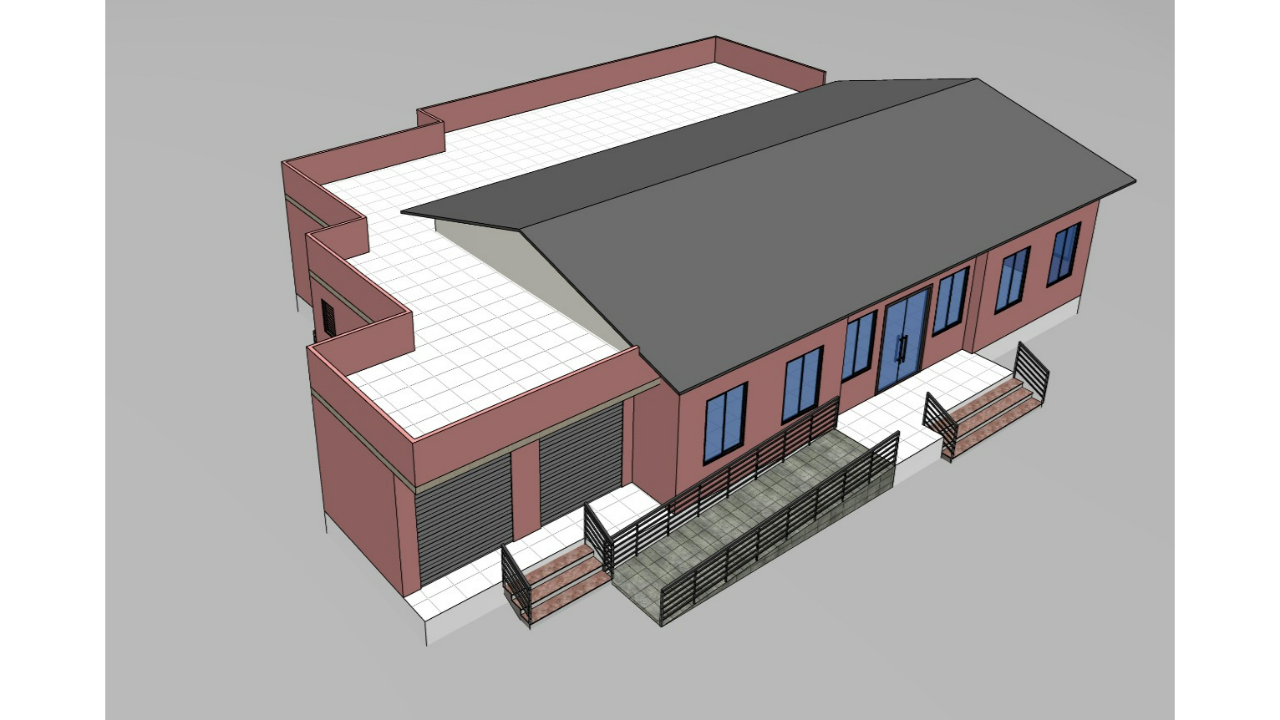

2.	Community Centre	View
