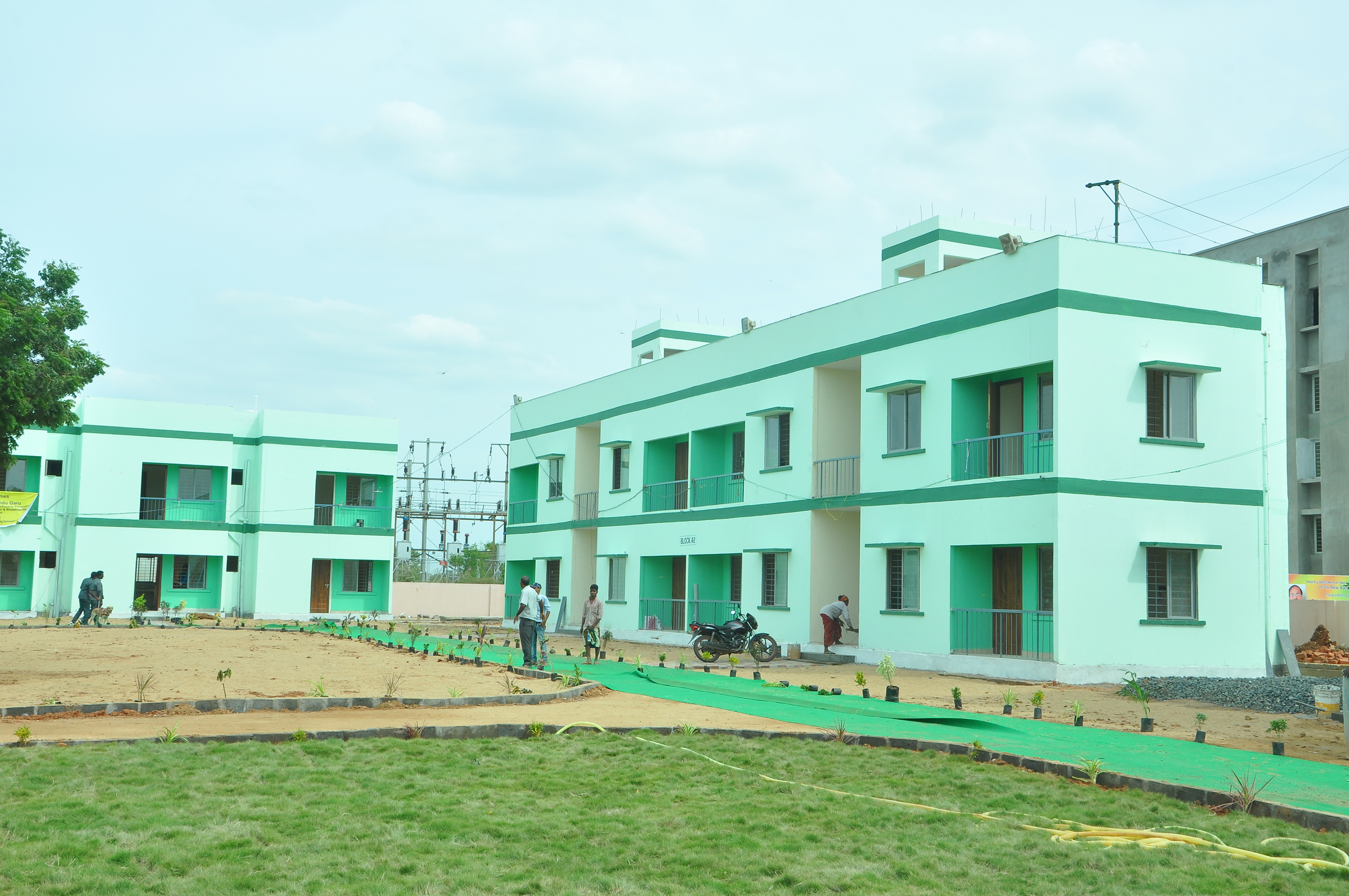

The District Magistrate and Collector, SPS Nellore, Government of Andhra Pradesh allotted land admeasuring 1.85 acres for construction of 36 Demonstration Houses and a Demonstration Community Building at Saraswathi Nagar, Chowtapalem Village, Venkatachalam Mandal, SPS Nellore District.

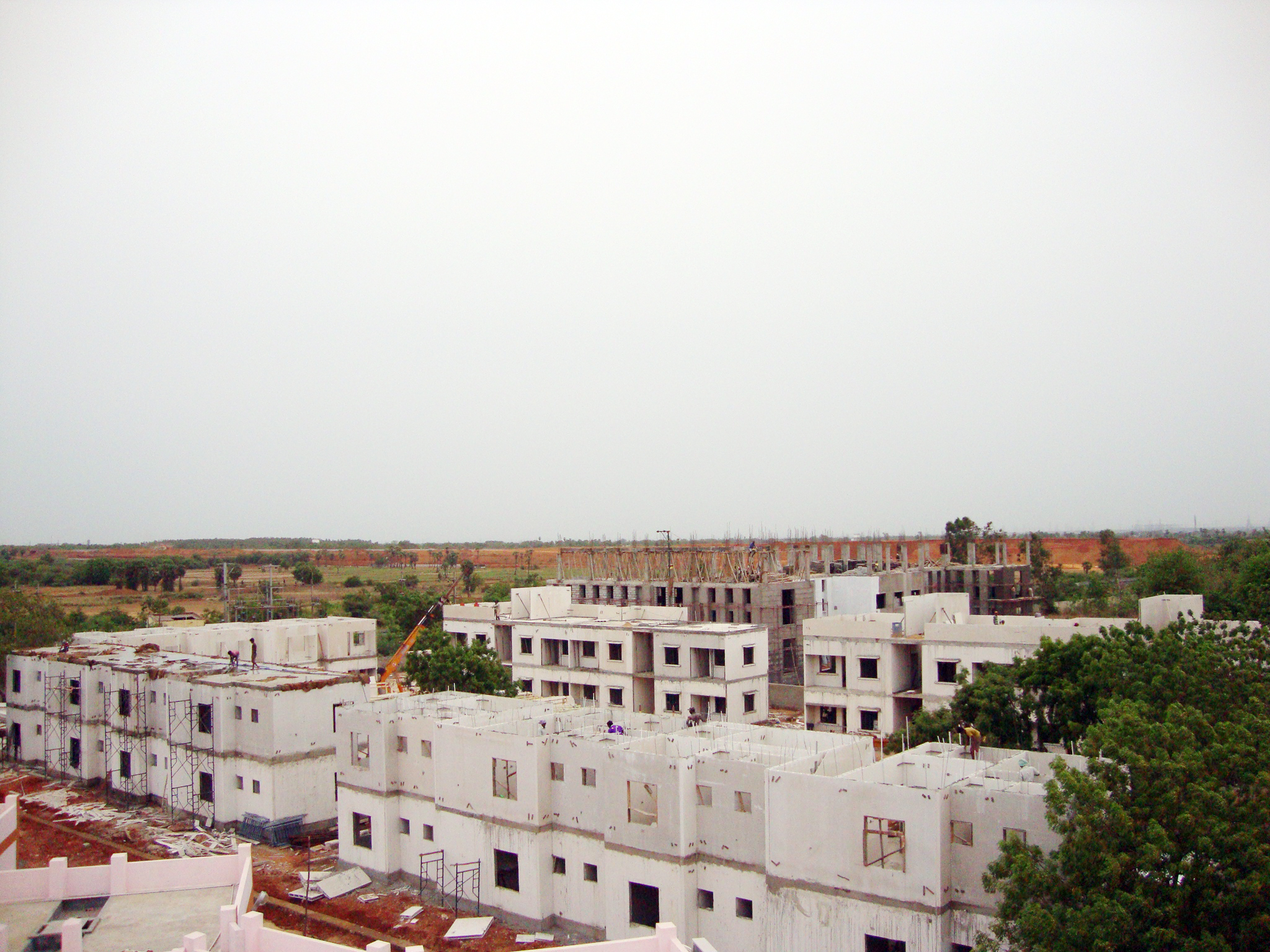

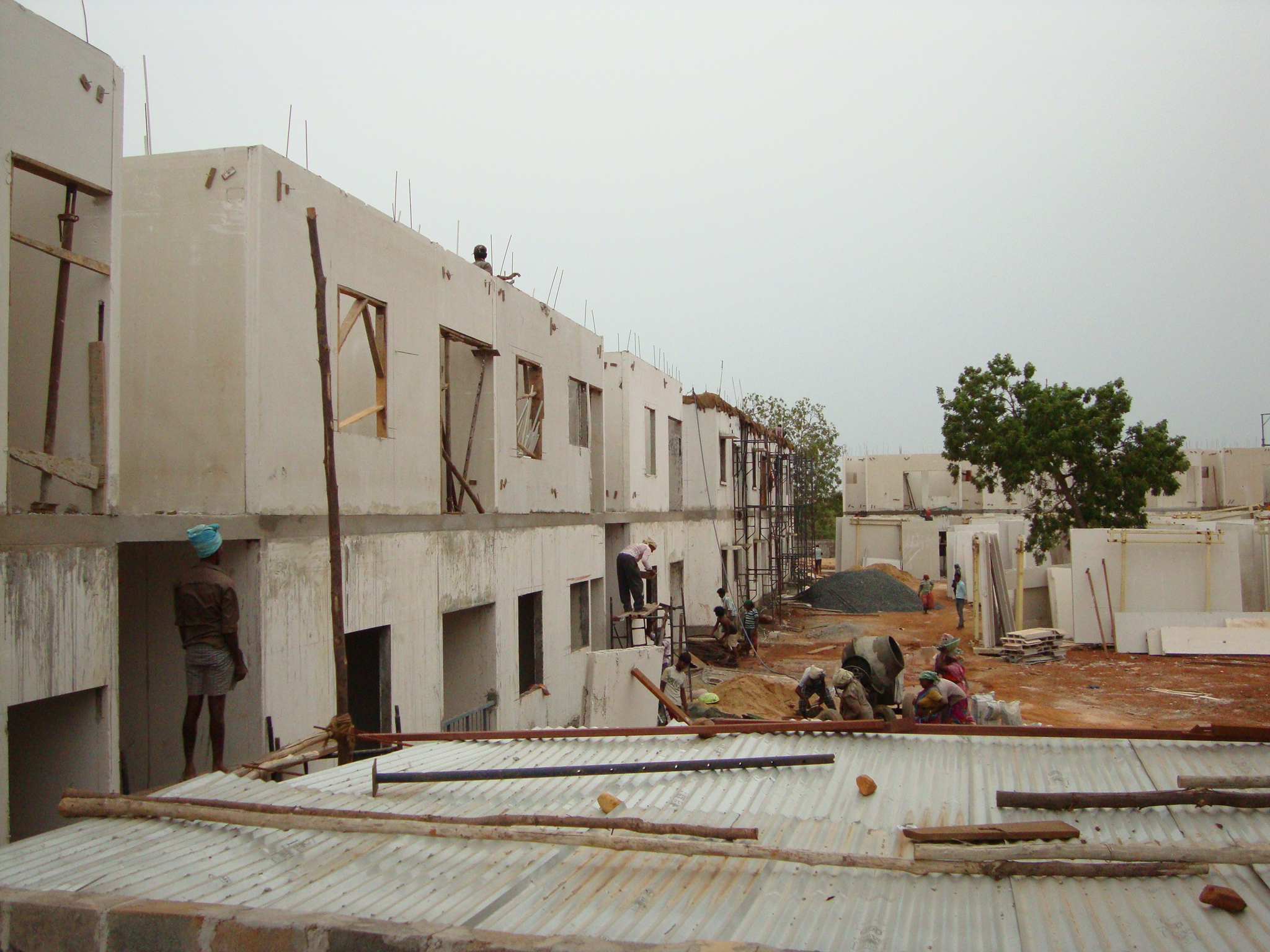

The project was undertaken in association with IIT Madras, FRBL and Andhra Pradesh State Housing Corporation Ltd. using STAY IN PLACE FORMWORK SYSTEM - Glass Fibre Reinforced Gypsum Panel (GFRG) technology. The designs of the houses were vetted by IIT Madras and the execution for 36 houses was undertaken by FRBL Kochi, a Govt. of India undertaking. The construction of Community Centre building was undertaken with Andhra Pradesh State Housing Corporation Ltd. The IIT Madras was involved right from the planning and designing of the project to capacity building till completion of the project. The salient features of the project are given below:


  • No. of houses   :   36 (G+1)
  • Carpet area of each unit
    • Type A – 16 DUs : 31.06 sq.mts.
    • Type B – 16 DUs : 29.39 sq.mts.
    • Type C – 4 DUs : 56.74 sq.mts.
  • Built up area of each unit
    • Type A – 16 DUs : 45.51sq.mts.
    • Type B – 16 DUs : 42.24 sq.mts.
    • Type C – 4 DUs : 77.86 sq.mts.

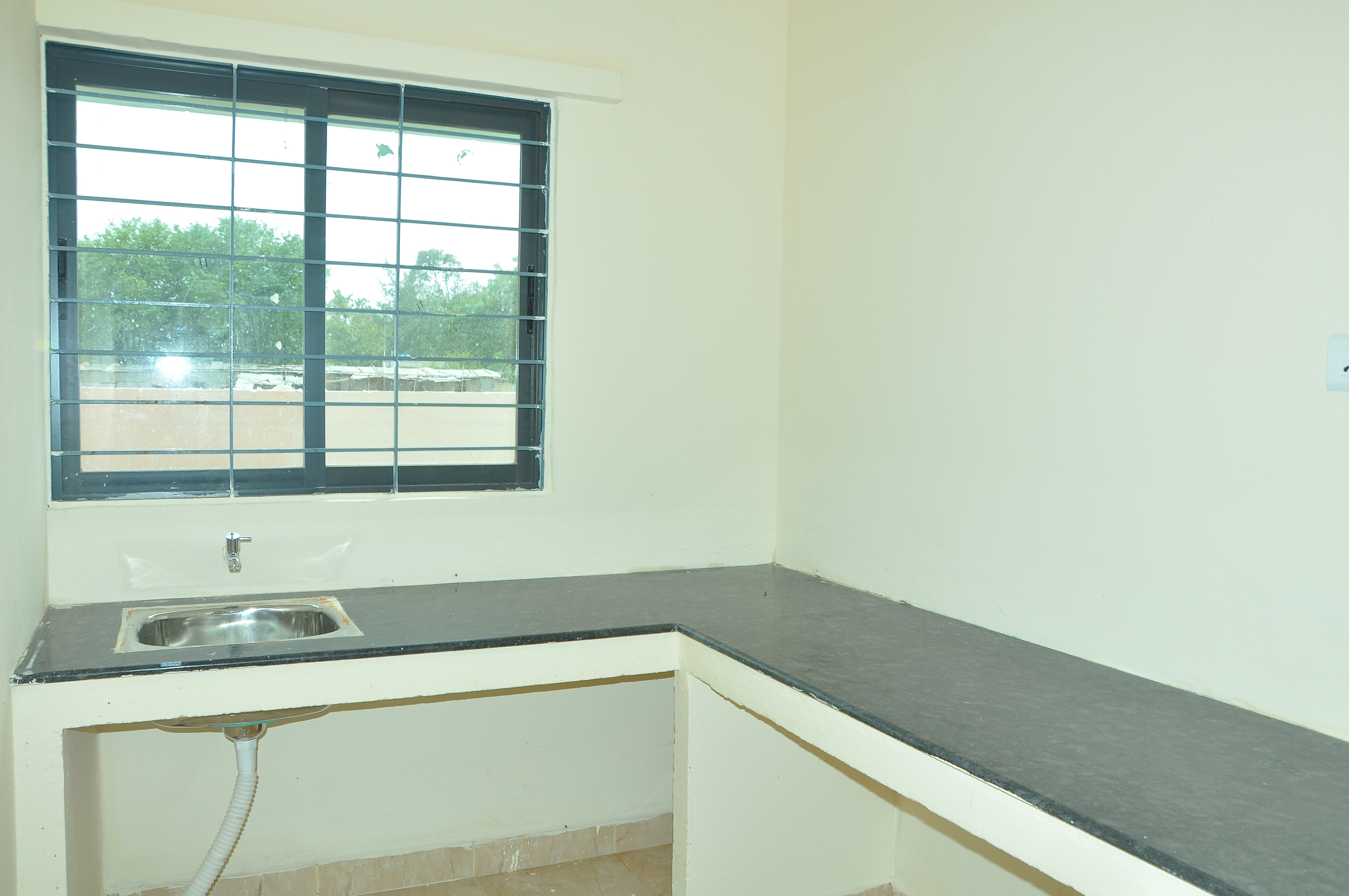

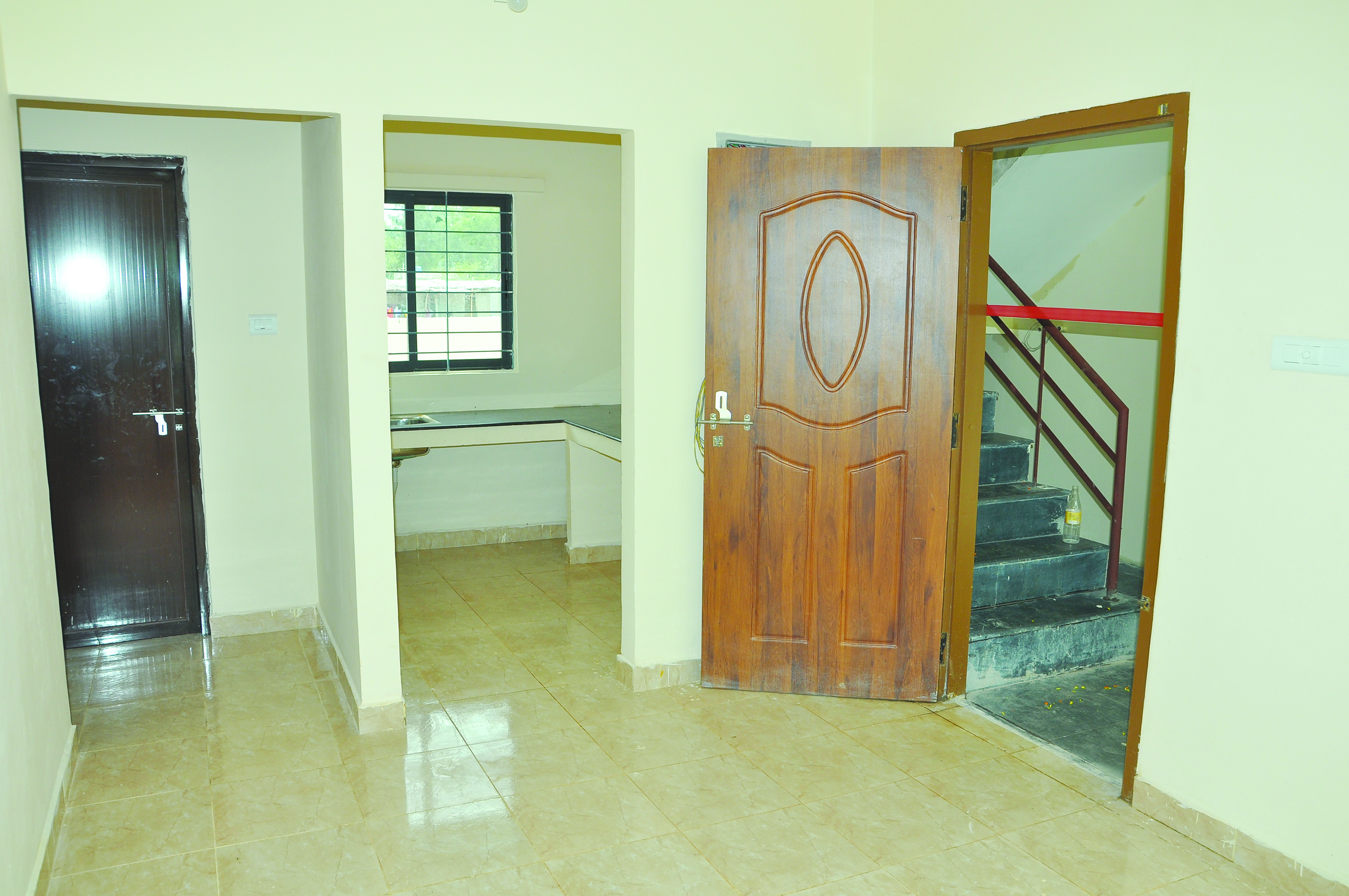

  • Type A & B Unit consist of : Living room, Bedroom, Kitchen, Bath, WC and Balcony
  • Type C Unit consist of : Living room, 3 Bedroom, Kitchen, 2 WC & Bath and Balcony & Terrace
  • includes Earthquake Resistant Features.

About the Technology

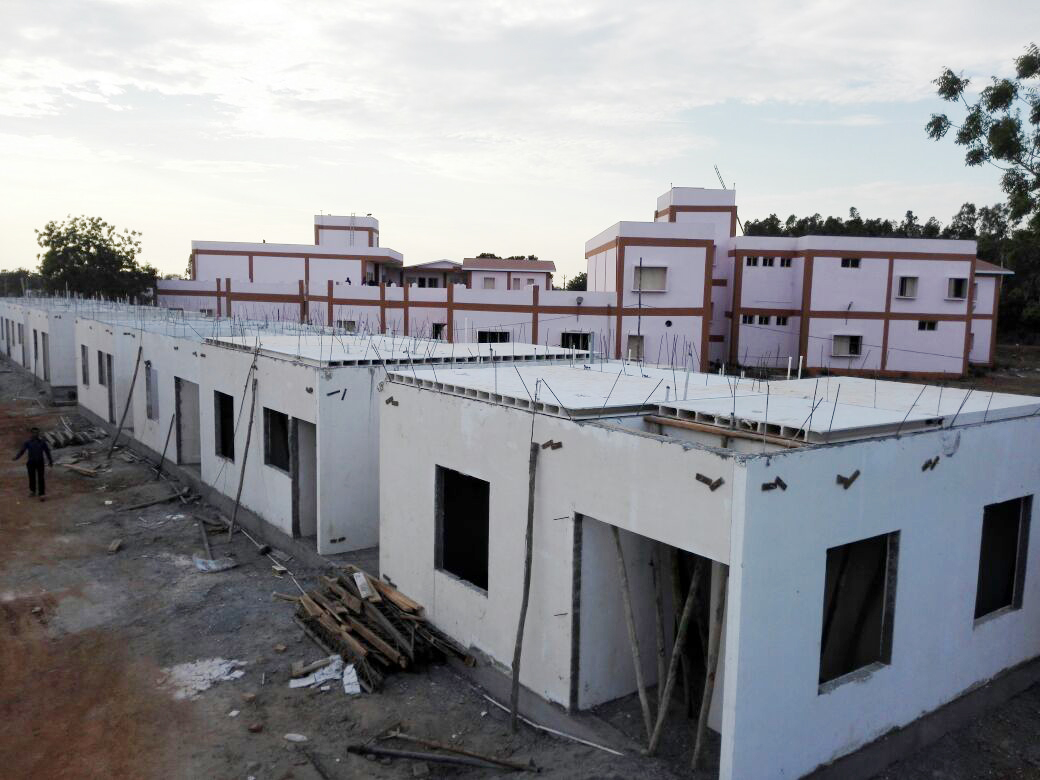

Glass Fibre Reinforced Gypsum (GFRG) Panel also known as Rapidwall is made-up of calcined gypsum plaster, reinforced with glass fibers. The panel was originally developed by GFRG Building System Australia and used since 1990 in Australia for mass scale building construction. In recent times, these panels are being produced in India and the technology is being used in India.

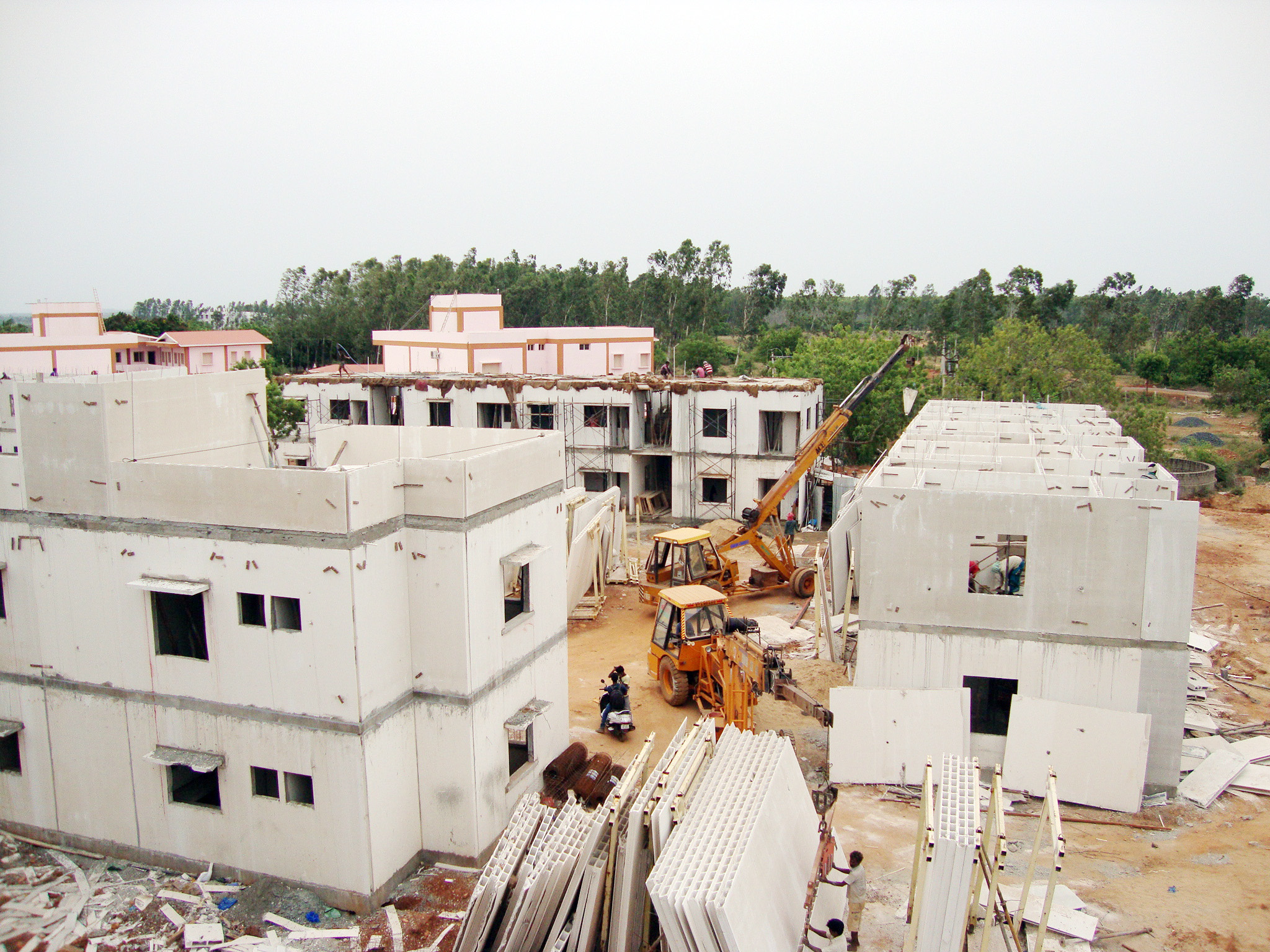

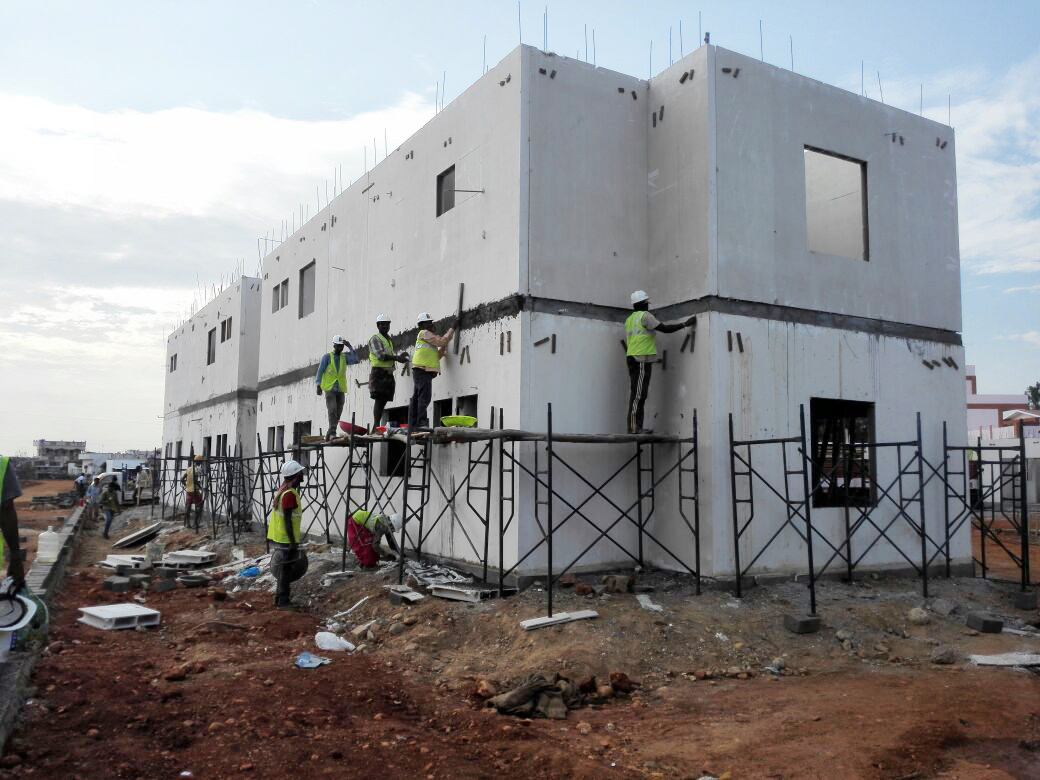

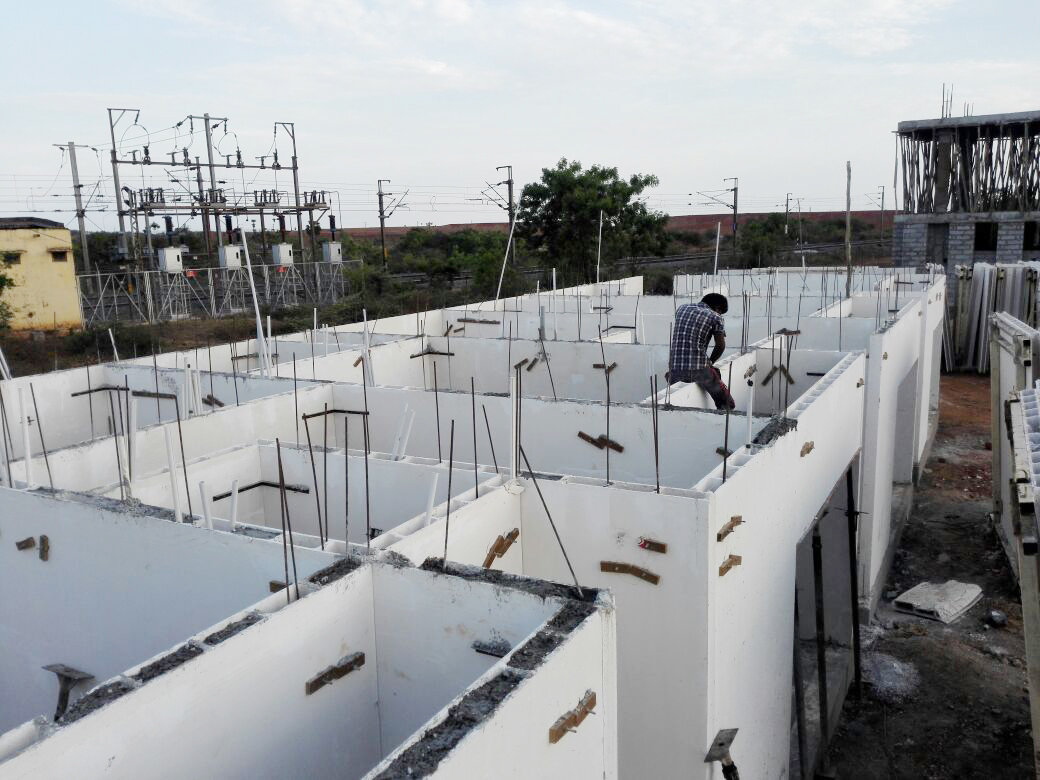

GFRG is an integrated composite building system using factory made prefab load bearing cage panels and monolithic cast in-situ RC infilled for walling and floor/roof slabs, suitable for single storey to ten storey building. It is made of calcined gypsum plaster, reinforced with glass fibres and panels manufactured to a thickness of 124mm under carefully controlled conditions to a length of 12m and height of 3m, containing cavities. The cavities are filled with reinforced concrete or any other filler material as per design requirements. The panel are being produced at FRBL Kochi and RCF Mumbai and being promoted by IIT Madras.

Technologies/Specifications for Demonstration Houses:

Foundation Walling Roof/Floor Doors/Windows Flush door Shutter Flooring & Finishing Staircase
  • RCC Column footing with M-25 concrete
  • GFRG Panel filled with M20 concrete
  • GFRG Panel Slab for floor & roof
  • Wooden Door & Aluminum Window Frames
  • PVC door and frames in toilet
  • Glazed aluminum windows
  • Ceremic tile flooring
  • Interlocking pavers block at entrance lobby
  • Oil bound distemper on internal surface
  • Exterior walls with weather proof paint
  • GFRG Panel with polished cuddapa stone as tread and riser

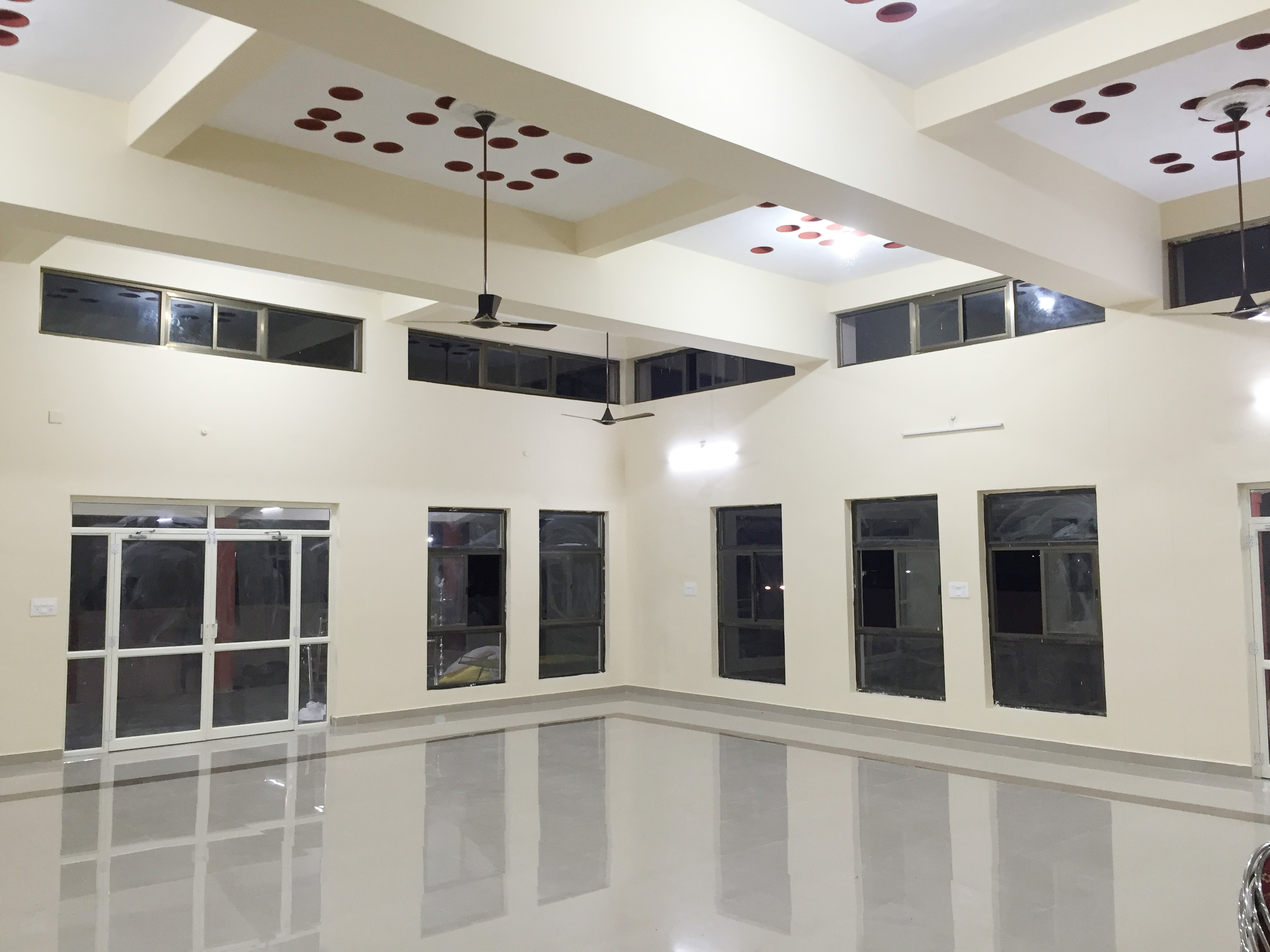

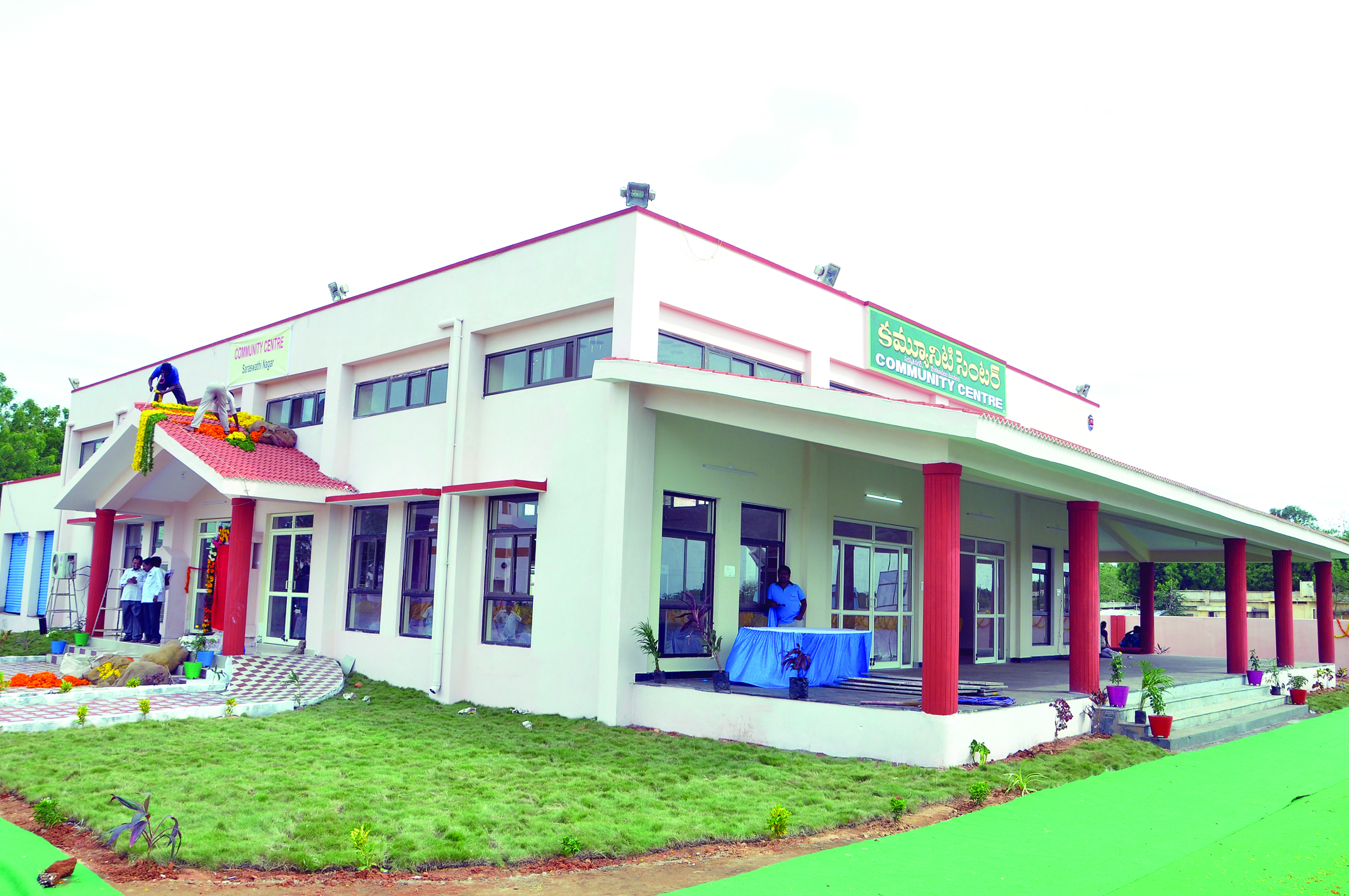

BMTPC, in continuation of its efforts to demonstrate cost effective and disaster resistant technologies, constructed Community Building having an area of 6900 sq.ft. using green technologies like flyash bricks, filler slabs, etc. The Community Building consists of a multi-purpose hall, kitchen/pantry area, office space, utility area, ladies and gents’ toilets.

Area of Community Building : 6900 sq.fts

The details of the specifications used in construction of Community Centre are as follows:

Foundation Walling Roof/Floor Doors/Windows Flooring & Finishing
  • RCC Column footing with grade beams using M-25 concrete
  • 200 mm thick walls using Fly ash blocks
  • Filler slab using earthen pots
  • RCC Sloping roof over the courtyard and entrance lobby using designer tiles as cladding
  • Aluminium Door & Window Frames
  • Glazed aluminum door shutter
  • PVC door and frames in toilet
  • Glazed aluminum windows
  • Vitrified tiles flooring
  • Interlocking pavers block in entrance lobby
  • Oil bound distemper on internal plastered surface
  • Oil bound distemper on internal plastered surface


  • Two shops in Com. Center
  • Boundary wall
  • Internal CC roads & pavements

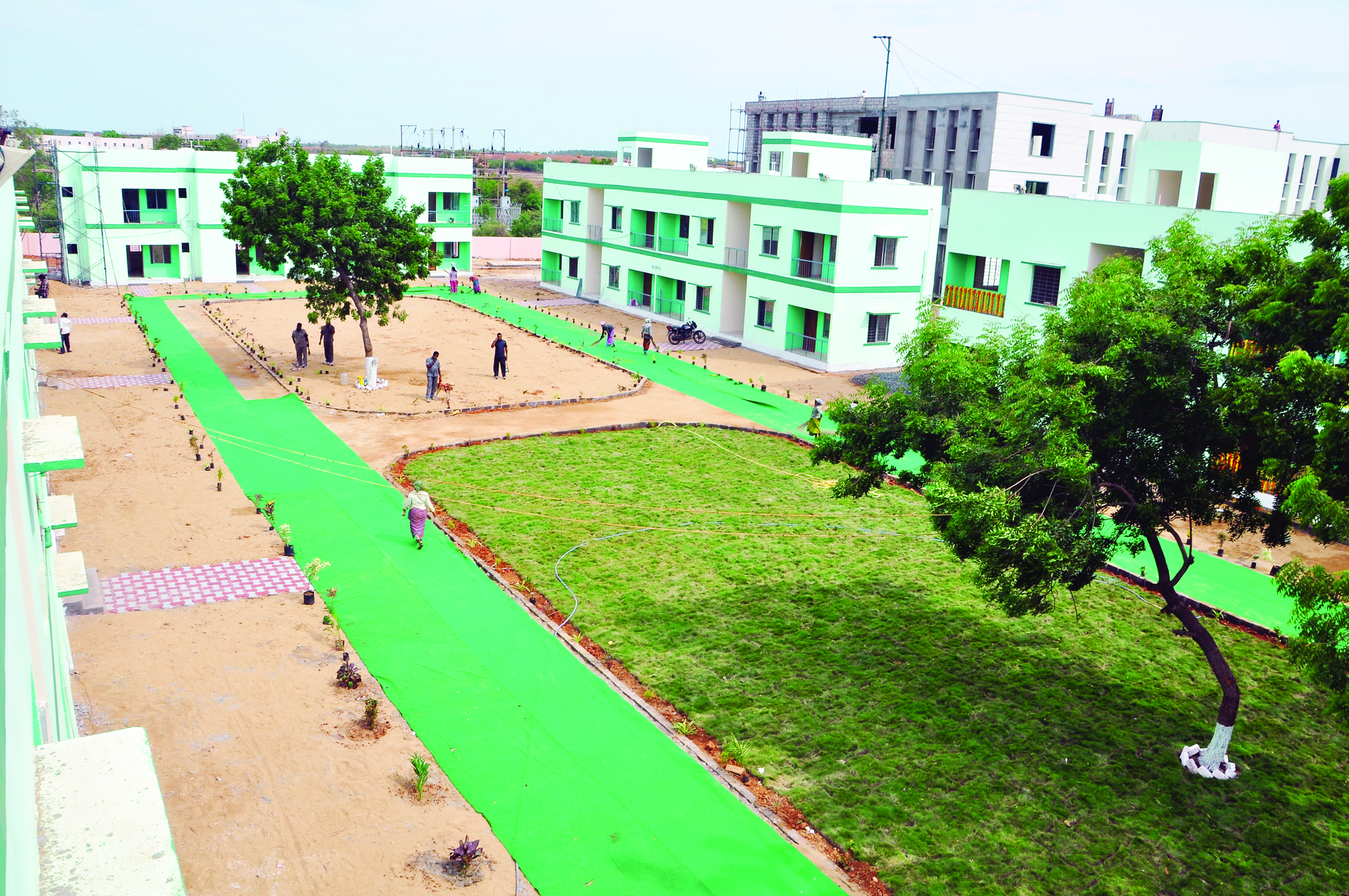

  • Landscaping of open area & children play area
  • Underground Water Tank
  • Septic tanks
  • LED street lights
  • ternal electrification, transformer, etc

The technical evaluation of the project has been carried out by Indian Institute of Technology (IIT), Madras.

S.No Description Action
1. Site Plan View
2. Typical Floor Plan View
3. Typical Floor Plan TYPE-B View
4. Floor Plan - Community Centre View
